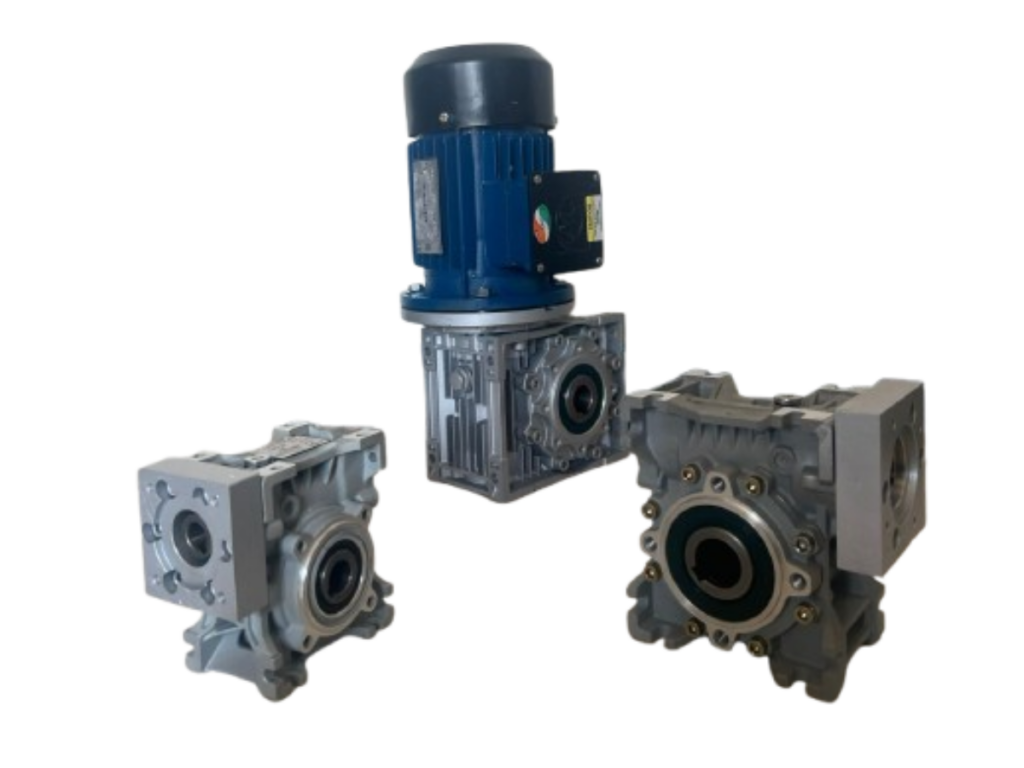

Worm Gearboxes for IEC motors and Servo Motors
About the product
Worm gearboxes are 90 degree gearboxes used for various applications in multiple industries.
Design
The cubic shape of gearbox housing gives extreme flexibility for the installation for the installation of the gearbox with alternative mounting position from all sides.
Flange and output shafts connections are convenient for wide range of mounting.
Features
Gearbox housing,cover and flange are made of die-cased alluminium alloys.These die-casted materials are de-burred,shot-peened,washed and surface treated to have anti-corrosion characteristics.
Worm Shaft:- Hardened and Ground(Material:- 21 NiCrMo2)
Worm Wheel: Phosporous bronze(Material:- Gz12SnCuNi/PB2(12thGrade) gives maximum Strength and efficiency and less noise
Output Options
- Hollow Shaft
- Solid Shaft
- Output Flange
- Shrink disc
- Spline
- Customised output.
Worm gearbox for servo motor
For servo applications gearboxes are equipped with exclusively FAG/SKF/TIMKEN bearings which are 2RS/RS Shielded,which will also give double leakage protection with oil seal.
Input can be fitted with zero backlash couplings.
Good for high speed applications.
Optional Special Features
All steel alloyed (SS304) shaft for corrosive environment and (SS316) shaft for food grade application.
Anti-corrosion screw (SS316) stainless steel material bolt.
FDA compliant or Antimicrobial FKM , lo speed shaft oil seal with all stainless-steel wearing ring and springs.
FSH H1 registered and halal and kosher certified – SKF make LFFG 220 or LFFG 320 grade synthetic gear oils.
Special paint of polyvinlidene coating to resist corrosion effect from atmospheric oxidation, water jets, acids,alkalis,detergents and mortar.
Special paint coating to resist salt spray and humidity from 1400hrs or more. Dry film hardness 2H-4H.
Need more help?
Senectus consequat sapien gravida ut ultricies elementum cubilia convallis potenti neque arcu
sales@ikoneec.in
+91 8668218348
Common Questions
Worm Gearboxes for IEC motors and Servo Motors
Worm gearboxes are mechanical devices designed to provide high torque and smooth operation by reducing speed. They are specifically compatible with IEC motors and servo motors, making them ideal for applications requiring precision, durability, and efficiency.
These gearboxes are commonly used in industries such as robotics, automation, material handling, conveyor systems, and packaging machinery. Their ability to deliver precise motion and handle heavy loads makes them highly versatile.
Worm gearboxes paired with servo motors provide:
- High torque output
- Compact design for space-saving installations
- Smooth, noise-free operation
- Self-locking capabilities for specific applications, ensuring safety and stability
Worm gearboxes are designed for optimal compatibility with IEC motors, ensuring efficient power transmission, long operational life, and consistent performance even under heavy loads.
Yes, many worm gearboxes can be customized to meet specific application needs, including adjustments in gear ratios, mounting options, and materials to suit different environments and operational demands. Always consult the manufacturer for tailored solutions.
